[OOR-Users] Fwd: Re: [OOR maintainers] LISP Beta network allocation

[Gunnar Arndt]

I've tested both configuration options (IPv4 and IPv6) with the
respective LISP settings, but that does not change anything. I keep
getting the same dynamic addresses from Unitymedia - both IPv4 and IPv6,

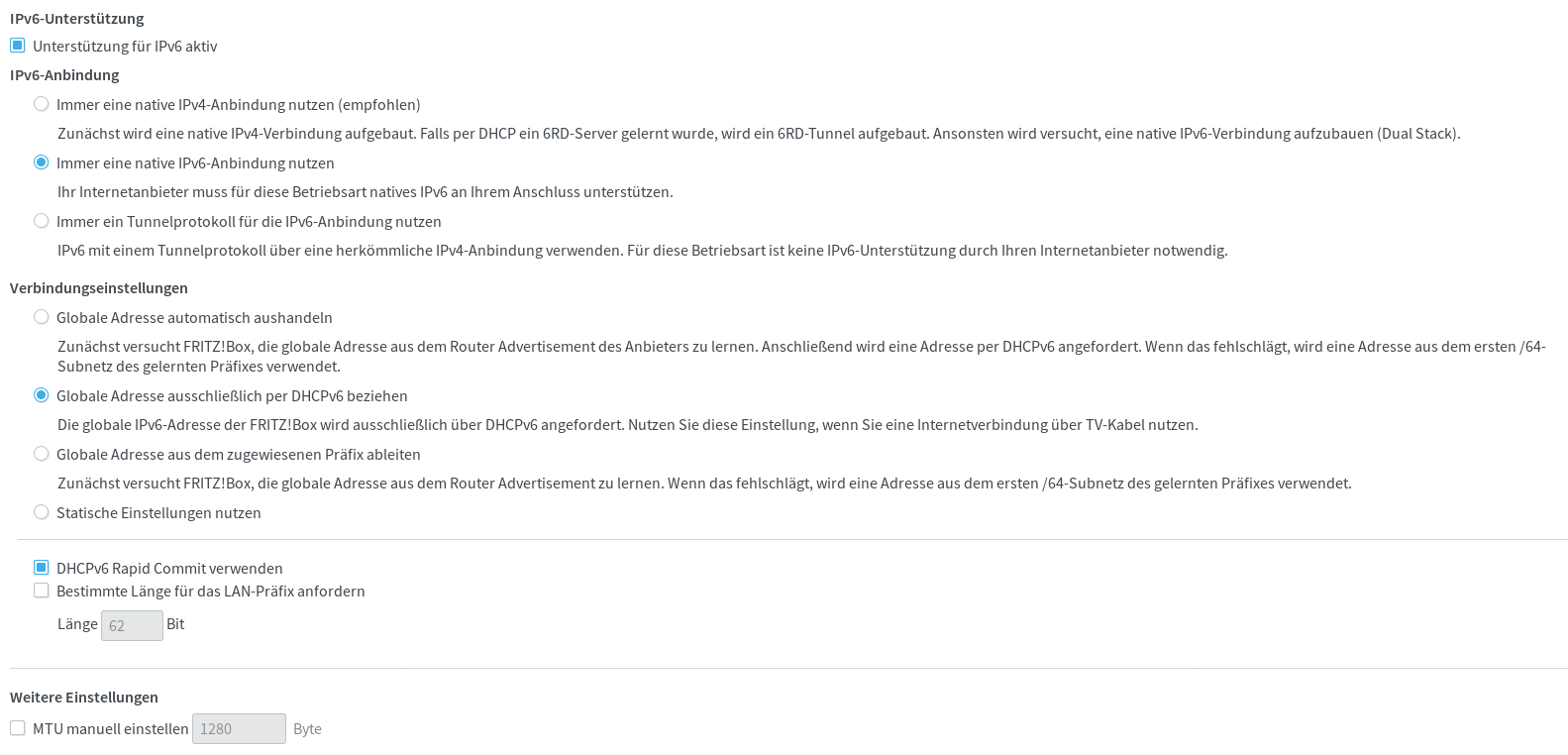

no matter what the router's config looks like. Here's a screenshot of
that config page once more. It probably looks a bit different from yours
for 'common' DSL, as it is for TV cable (you know that already, but
maybe other readers don't).


I even tried to use static IPv6 settings with the LISP IPv6 address, in
addition to the regular LISP setting in the relevant config page, but
that results in slow internet access only by IPv4. But no success...

Regards
Gunnar

Am 20.11.2017 um 10:52 schrieb Holger Zuleger:
> Hi Gunnar,
>
>>> Your Internet provider gives you an IPv4 or an IPv6 address? You can
>>> check it in any 'what is my ip' page.
>>> If your Internet provider is using IPv6, then these are the data to be
>>> used:
>>>
>>>    * MS/MR: 2001:6C8:130:600::1:1, 2001:40B0:7500:205::9353:8320
>>>    * PxTR: 2001:6c8:130:600::1
> Please check if you have a native IPv6 access.
> As far as I know, Unitymedia is providing native IPv6 and often using
> only shared IPv4 addresses.
> If this is the case LISP will not run with IPv4 as RLOC address family!
>
> So please configure the IPv6 adresses (and *not* the IPv4 addresses) as
> mentioned by Albert.
>
> BR
>   Holger
>
>>> Best regards
>>>
>>> Albert
>>>
>>>
>>>
>>> El 17/11/17 a les 00:12, Gunnar Arndt ha escrit:
>>>> Dear Albert and maintainers,
>>>>
>>>> thank you for the login data. I haven't yet succeeded in actually
>>>> joining the network. There does not seem to a lot that could be
>>>> configured the wrong way in my "FritzBox" router:
>>>>
>>>> There is another tab that allows a static IPv6 address to be set, but
>>>> if I set the EID prefix for IPv6 there, too, the internet access does
>>>> not work any longer, so I returned to the recommended DHCPv6 option.
>>>> My provider is Unitymedia (formerly KabelBW), a cable TV provider.
>>>> You don't happen to have information if they allow their customers to
>>>> use LISP, do you?
>>>> There does not seem to be much information for end users about LISP
>>>> in the web. Can you give me a hint how to proceed? Thanks again.
>>>>
>>>> Kind regards,
>>>> Gunnar
>>>>
>>>> Am 15.11.2017 um 10:33 schrieb Albert López:
>>>>> Dear Gunnar,
>>>>>
>>>>> Here's your allocation data:
>>>>> Device name: garndt-xtr
>>>>> Region: Europe
>>>>> Geographic location: Germany
>>>>> EID-prefix: 153.16.58.0/28 (more specifics allowed)
>>>>> EID loopback: 153.16.58.1
>>>>> EID-prefix ipv6: 2610:D0:21E8::/48 (more specifics allowed)
>>>>> EID loopback ipv6: 2610:D0:21E8::153:16:58:1
>>>>> Map Servers: {RIPE} {upc-mr-ms-1 147.83.131.32, tdc-mr-ms
>>>>> 193.162.145.50, intouch-ams-mr-ms-1 217.8.98.42}
>>>>> Map Server password: ******
>>>>> Map Resolvers: {RIPE} {upc-mr-ms-1 147.83.131.32, tdc-mr-ms
>>>>> 193.162.145.50, intouch-ams-mr-ms-1 217.8.98.42}
>>>>> PETR: 193.162.145.46, 217.8.98.33
>>>>> Contact: Gunnar Arndt <gunnar at arndt.city>
>>>>> Expiration date: 31/03/2018
>>>>>
>>>>> You can check if you correctly registered your site into the mapping
>>>>> system on the LISP Site Status page here:
>>>>> http://www.lisp4.net/lisp-site/ After one day it will probably show
>>>>> up on the LISPmon website as well: http://lispmon.net
>>>>>
>>>>> You can slice up your prefixes into more specifics and distribute
>>>>> them between more than one device if that becomes necessary, just
>>>>> make sure they don’t overlap.
>>>>>
>>>>> The assigned EIDs will expire the 31st of March of 2018. You can
>>>>> request to renew them by mail.
>>
>>
